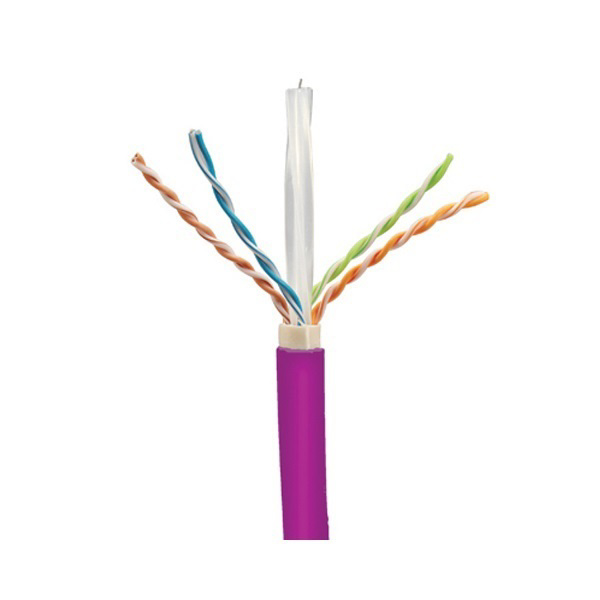

Molex 305mtr U|UTP LSZH CAT6 Networking Cable
from
$5,801.60
Ex Tax: $4,833.00
- Stock: In Stock
- Model: molex-305mtr-u-utp-lszh-cat6-networking-cable
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Tags:
Molex Product Category
In this internet era connection or networking plays an essential role. These connections are relying on networking cables that are mainly used to connect different networking devices.

MECHANICAL
Conductor Size : 23 AWG
Primary Insulation : Solid Polyethylene
Nominal O.D.: 1.045 + 0.02mm
Twinning: Right hand lay
Sheath Type: LSZH 332.1
Minimal Wall: 0.55mm
Nominal O.D: 6.1mm
Cable weight: 13.6 Kgs Nominal
NVP: 67%
ELECTRICAL
D.C. Resistance : 9.38 ohm/100m
COMMERCIAL STANDARDS
EN 50173 2nd Edition
ISO/IEC 11801 2nd Edition
EIA/TIA 568.2-D
IEC 60754-2
IEC 61034-2
FIRE PROPAGATION TESTS
UL 1581
VW1, IEC 60332.1
EN0256-2-1
Performance Characters - Category 6 EIA/TIA 568.C.2
