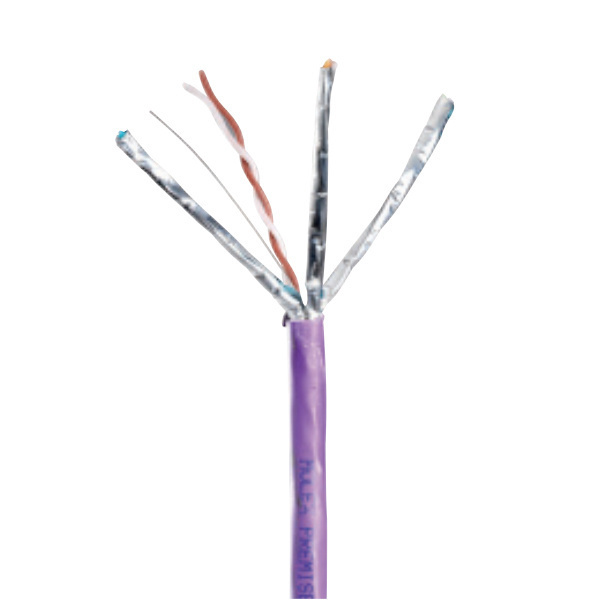

Molex 500 mtr Cat 6A U|FTP LS0H Networking Cable

0 reviews • Write a review

from

$5,801.60

Ex Tax: $4,833.00

Stock: In Stock
Model: molex-500-mtr-cat-6a-u-ftp-ls0h-networking-cable

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tags: Molex Product Category

Features and Advantages

Outstanding signal isolation
The cable is compliant with ISO/IEC 11801 amendment 2 and TIA/EIA 568-C.2
Enhanced performance 4 pair U/FTP LS0H cable
Resistant to alien crosstalk
Color coded for ease of termination

Mechanical

Conductor Size: 23AWG
Primary Insulation: Foamed Polyethylene
Screen material: Laminated Aluminium
Sheath Type: LS0H
Nominal OD: 7.4 + 0.3 mm
NVP: 75-77%
Screen: Each pair enclosed in laminated aluminium foil
Drain Wire: tin-coated copper
Pulling Force: 110N maximum
Short term. bend radius: 8 x OD mm
Long Term bend radius: 4 x OD mm
Operating Temperature

Installation: 0˚C to +50˚C
Operation: -20˚C to +70˚C

Electrical Characteristics:

Capacitance: < 5.6nF/100m
DC Resistance: ≤ 9.38Ω/100m
Propagation Delay: 514 + 36f1/2 nS/100m max @1-500 MHz
Propagation Delay Skew: 45 nS/100 max @ 1-500 MHz
Mean Impedance: 100 ± 15Ω
Voltage Rating: 2V dc maximum
Resistance Unbalance: 5% max.
Coupling Attenuation: 45dB min @30-100 MHz 40-20 Log (f/100) @ 100-500 MHz
